Description

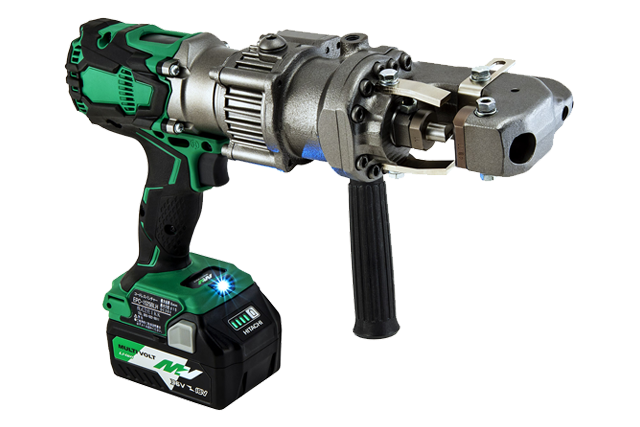

Double-acting punching machine, unique compact and lightweight machine. Made in Japan.

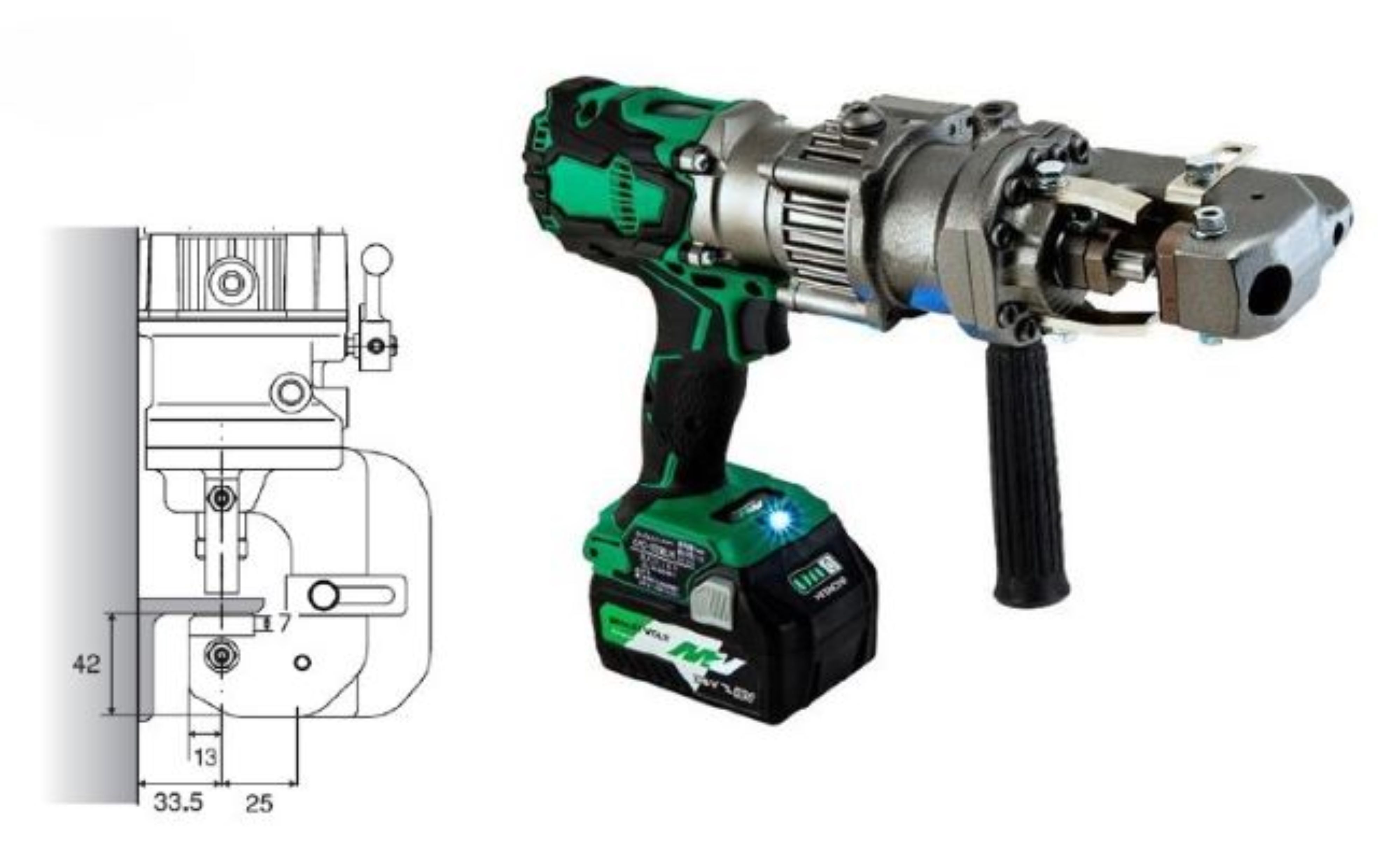

Space between punch and die: 8mm

Throat (center of punch to back of jaw): 25mm

Capacity:

Round: max. Ø15mm in 6mm steel

Slot hole: Ø11x16.5mm in 6mm steel

Maximum material thickness:

Steel (S235/S55): 6mm

Stainless Steel 304: 5mm

Dimensions: 338x85x260mm (excl. separate handle)

Weight 6.2kg incl. battery

Supplied as body only, excluding charger and battery. Suitable type: HiKoki BSL36A18X and UC18YDL 2, UC18YSL3, UC18YDL, UC36YSL, etc. Naturally, we can also offer these.
