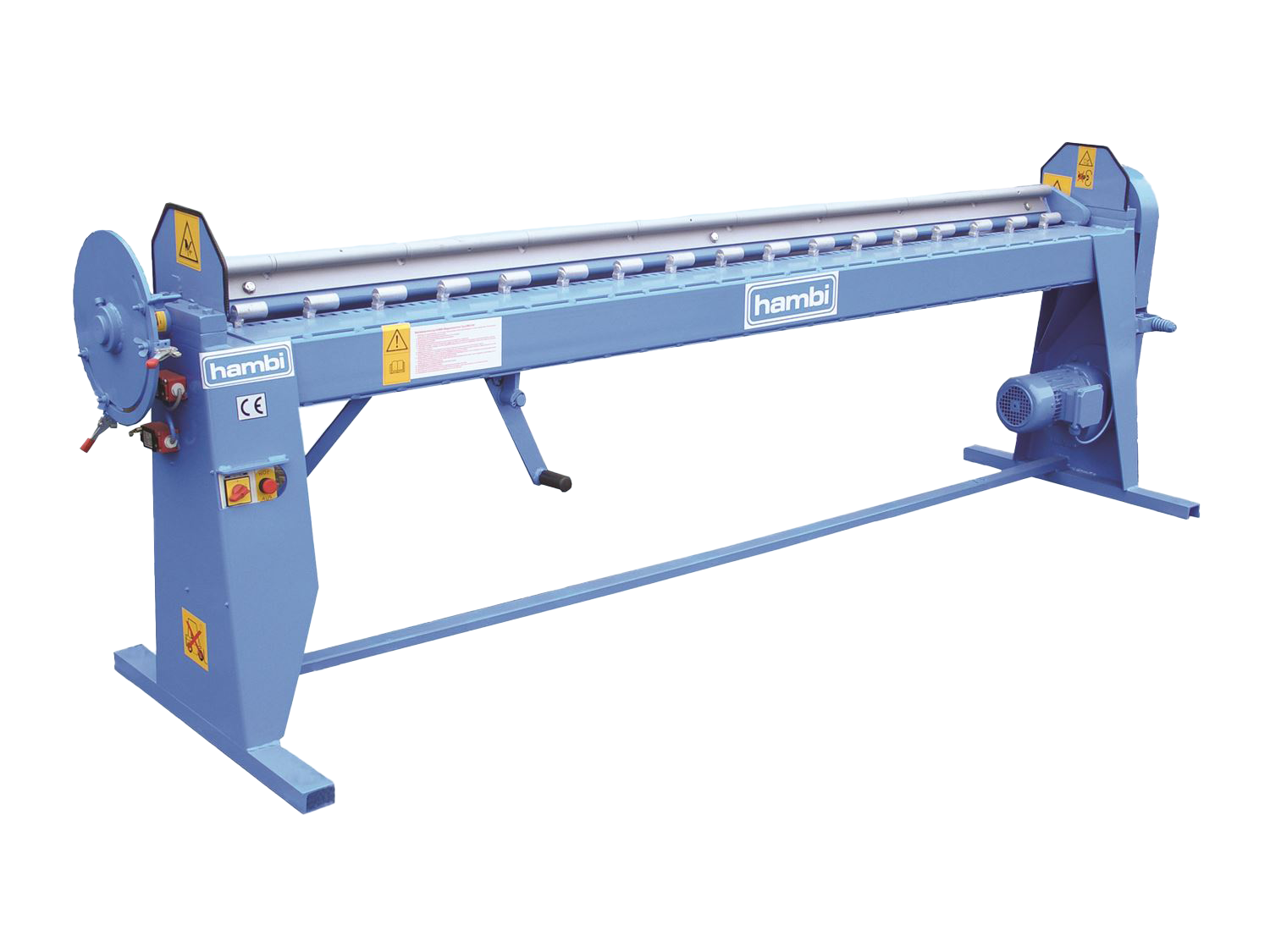

Description

Features:

· Bending by means of 17 centrally controlled bending cams with a diameter of Ø30mm;

· Setting up 3 bending angles up to 180°;

· Equipped with anti-rotation feature and central locking;

· Larger bending cams (45, 60 and 75mm) are available on request.

Technical information:

· Bending capacity with 30mm bending cams: max. 30 x Ø6, max. 25 x Ø8;

· Working width: 2.5 meter;

· Voltage: 400V / 50Hz;

· Power: 0.55 kW;

· Dimensions (mm): 2950x800x1000;

· Weight: 319 kg.
