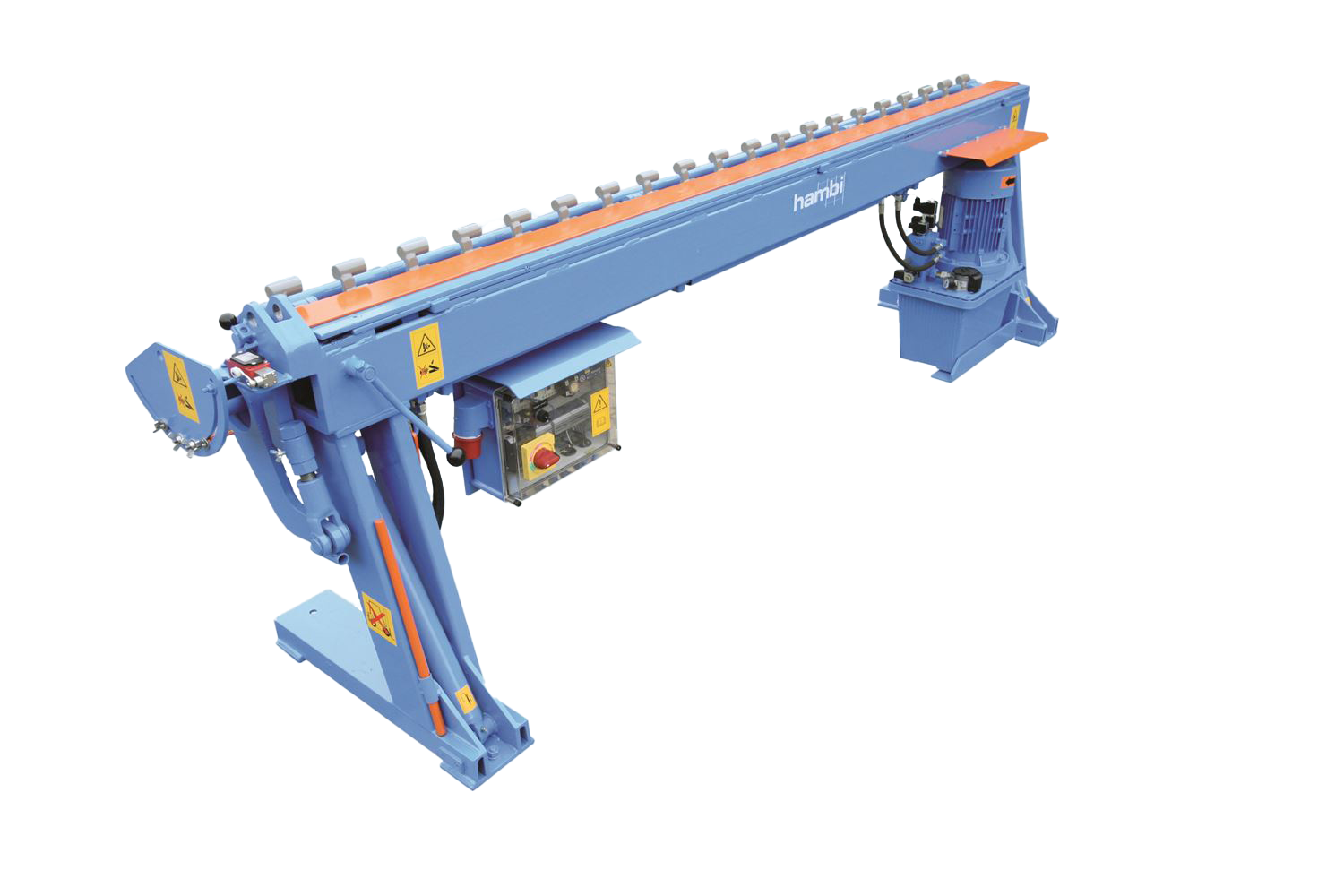

Description

Features:

· Bending by means of 20 centrally controlled bending cams with a diameter of 30mm;

· Reinforced contruction and bending cams;

· Hydraulic drive system;

· 2 bending speeds;

· Easy and quick adjustment of the bending cam positions.

· Setting up 3 bending angles up to 180°;

· Equipped with anti-rotation feature and central locking;

· With bending roll rail, preventing damages to the welded wire mesh;

· Larger bending cams (45, 60 and 75mm) are available on request.

Technical information:

· Bending capacity with 30mm bending cams: max. 85 x Ø6 mm, max. 30 x Ø12 mm;

· Working width: 3 meter;

· Voltage: 400V / 50Hz;

· Power: 5.5 kW;

· Dimensions (mm): 3400x750x950;

· Weight: 790 kg.
