Description

Features:

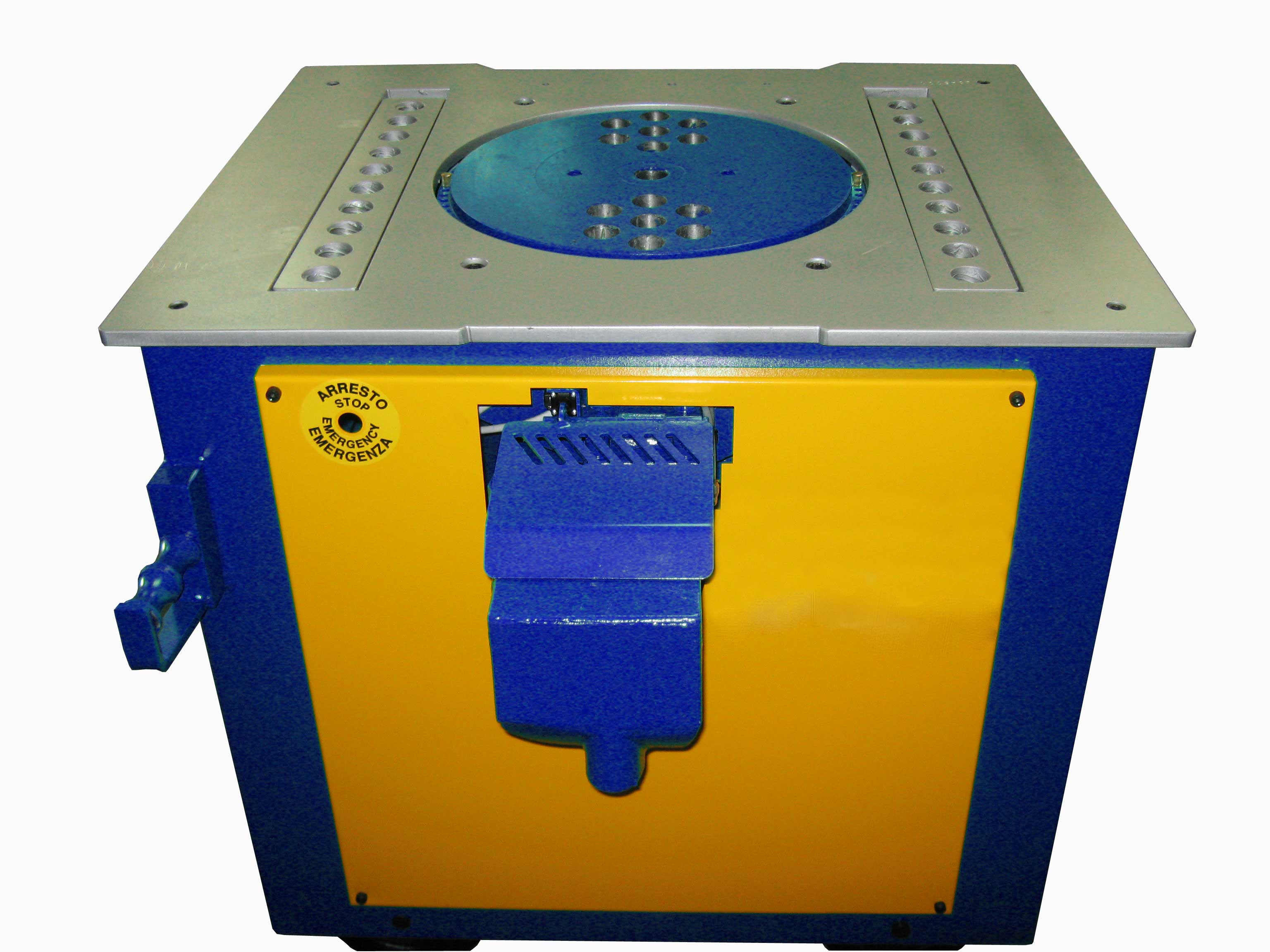

· Electrically driven bending machine for rebar.

· Simple and robust design with two adjustable guides.

· The bending plate can rotate both left and right.

· De cutting head is equipped with 2 hardenend steel blades that are changeable.

· Angle adjustment by means of stop pins (1 bending angle per direction of rotation).

Bending tools included:

· 6 bending rollers (Ø50-60-70-80-95mm)

· 3 bending pins

· 1 stirrup bending tool

· 1 small diameter bending pin

· 1 foot pedal

Technical information:

· RPM: 10

· Motor capacity: 2.2 KW at 3φ 400V/50Hz

· Max. bending capacity at R=650 N/mm²: 1×Ø28, 2×Ø20, 3×Ø16mm

· Max. bending capacity at R=850 N/mm²: 1×Ø26, 2×Ø18, 3×Ø14mm

· Max. cutting capacity at R=650 N/mm²: 1×Ø24, 2×Ø18, 3×Ø14mm

· Max. cutting capacity at R=850 N/mm²: 1×Ø22, 2×Ø16, 3×Ø12mm

· L×W×H: 80×100×83cm

· Weight: 335 kg
