Description

Features:

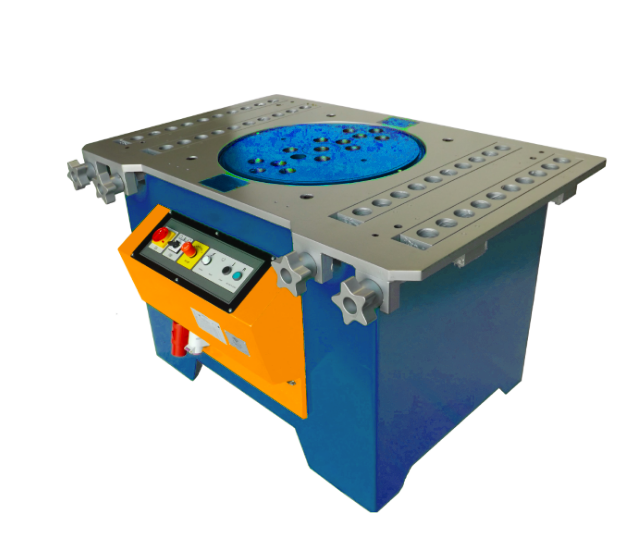

· Electrically driven bending machine for rebar.

· Simple and robust design with two adjustable guides.

· The bending plate can rotate both left and right.

· Angle adjustment by means of stop pins (1 bending angle per direction of rotation).

Bending tools included:

· 7 bending rollers (Ø80-95-110-150-200-240-300mm)

· 3 bending pins

· 1 stirrup bending tool

· 1 small diameter bending pin

· 1 foot pedal

Technical information:

· RPM: 5

· Motor capacity: 7.5 KW at 3φ 400V/50Hz

· Max. bending capacity at R=650 N/mm²: 1×Ø60, 2×Ø42, 3×Ø34mm

· Max. bending capacity at R=850 N/mm²: 1×Ø50, 2×Ø36, 3×Ø30mm

· L×W×H: 160×116×96cm

· Weight: 1600 kg
