Omschrijving

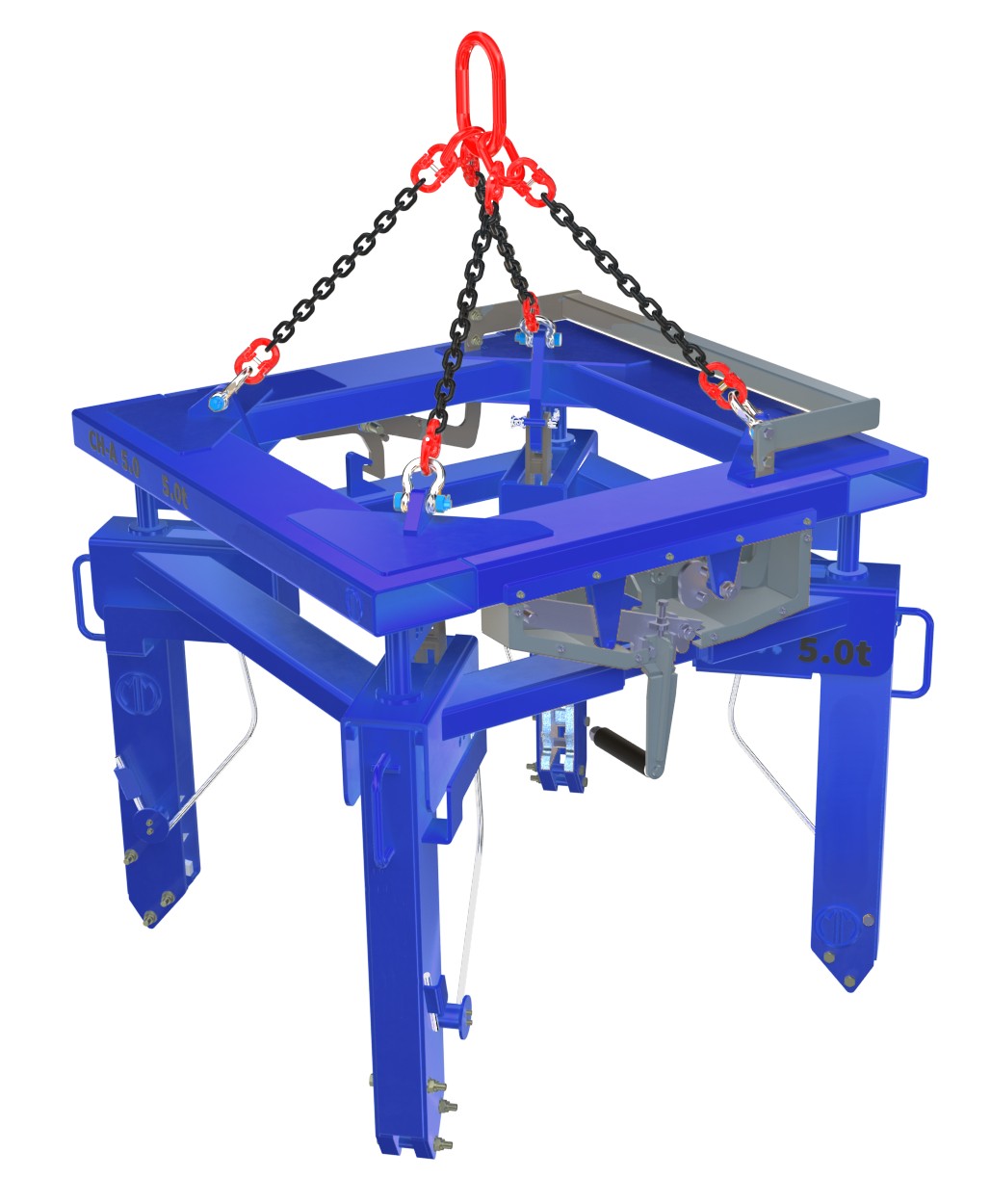

Outer Coil Gripper / WLL 6000 kg / Gripping range 850-1350 mm

Self weight ~ 520 kg.

Grabbing diameters:

I. Ø850 - Ø1100 mm

II. Ø912 - Ø1162 mm

III. Ø975 - Ø1225 mm

IV. Ø1037 - Ø1287 mm

V. Ø1100 - Ø1350 mm.

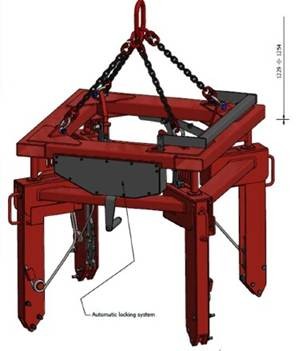

Lifting clamp is equipped with an automatic locking system.

Lifting clamp is equipped with a centering system.
