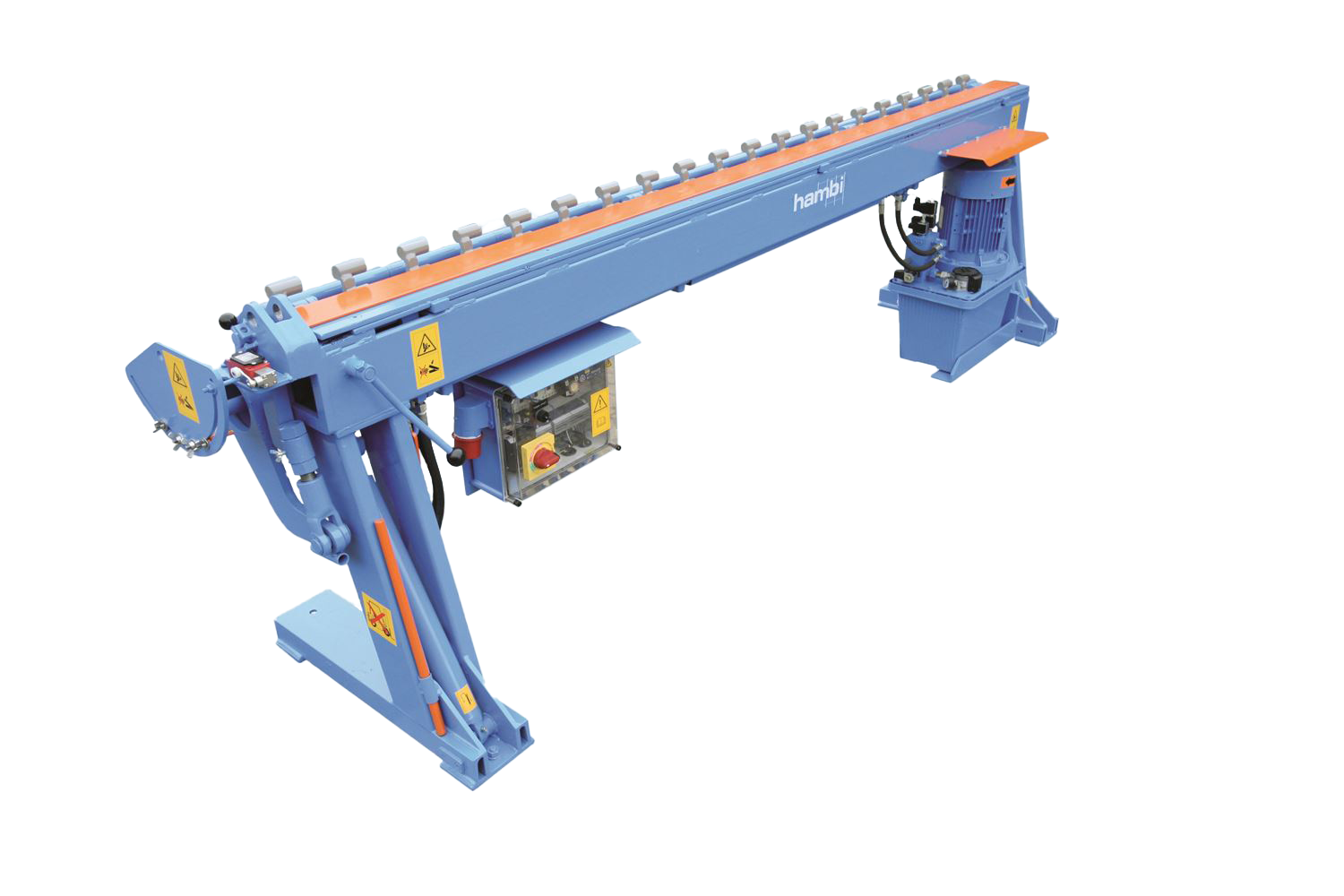

Description

Features:

· Bending by means of 34 centrally controlled bending cams with a diameter of 30mm;

· Reinforced contruction and bending cams;

· Hydraulic drive system;

· 2 bending speeds;

· Easy and quick adjustment of the bending cam positions;

· Setting up 3 bending angles up to 180°;

· Equipped with anti-rotation feature and central locking;

· With bending roll rail, preventing damages to the welded wire mesh;

· Larger bending cams (45, 60 and 75mm) are available on request;

· Hydraulic high-performance pump with oil filling;

· Safety foot switch with emergency stop button.

Technical information:

· Bending capacity with 30mm bending cams: max. 60 x Ø12 mm, max. 30 x Ø14 mm;

· Working width: 5 meter;

· Voltage: 400V / 50Hz;

· Power: 7.5 kW;

· Weight: 1,550 kg.
