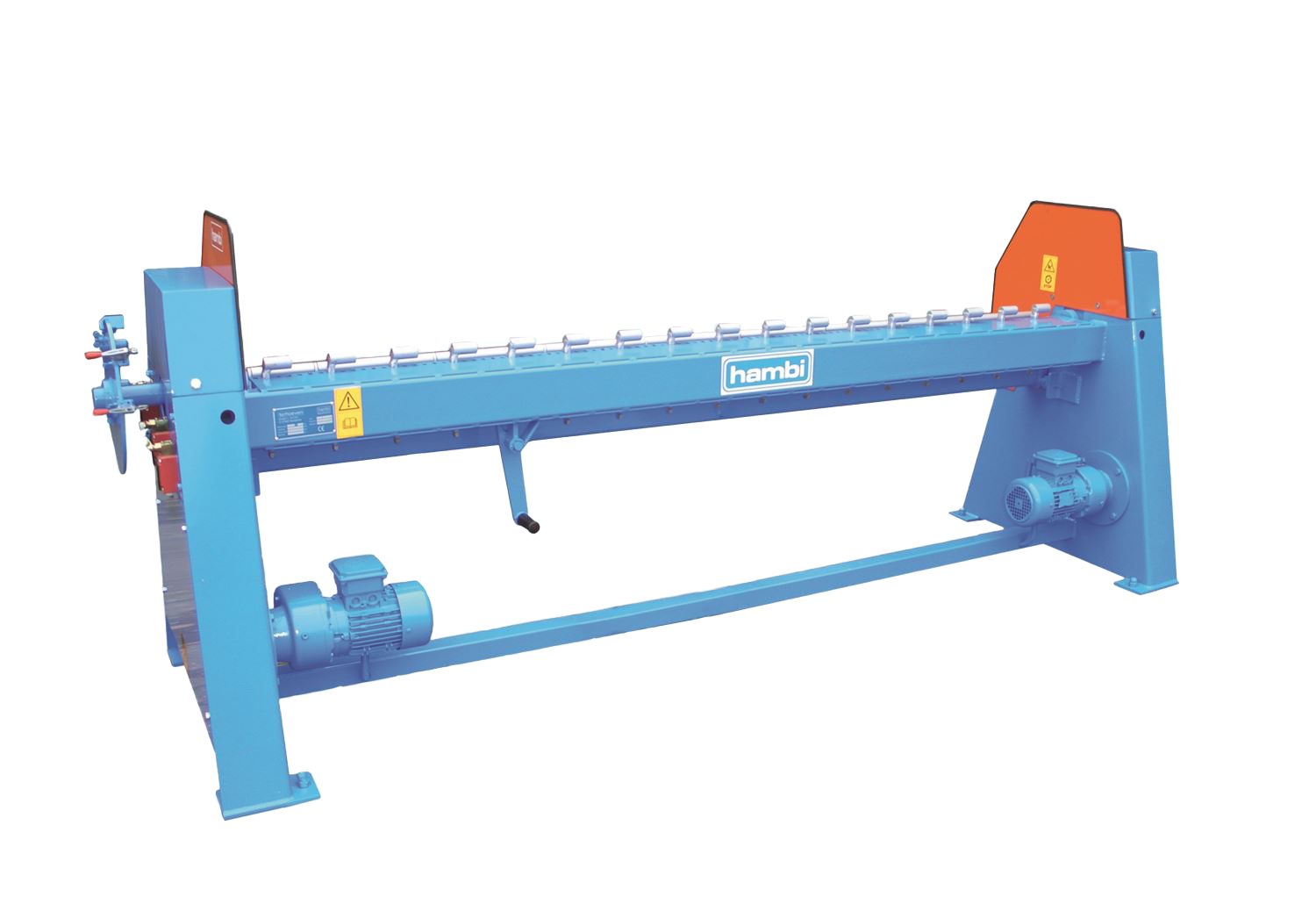

Description

Features:

· Bending by means of 20 centrally controlled bending cams with a diameter of Ø30mm;

· Easy and quick adjustment of the bending cam positions.

· Setting up 3 bending angles up to 180°;

· Equipped with anti-rotation feature and central locking;

· With bending roll rail, preventing damages to the welded wire mesh;

· Larger bending cams (45, 60 and 75mm) are available on request.

Technical information:

· Bending capacity with 30mm bending cams: max. 70 x Ø8 mm, max. 40x Ø10mm, max. 30 x Ø12 mm;

· Working width: 3.0 meter;

· Voltage: 400V / 50Hz;

· Power: 2 x 1.10 kW;

· Dimensions (mm): 3750x900x1200;

· Weight: 500 kg;

· Smallest deflection:

Ø8mm: 90mmx100mm // Ø10mm: 115mmx125mm // Ø12mm: 115mmx125mm.
