Description

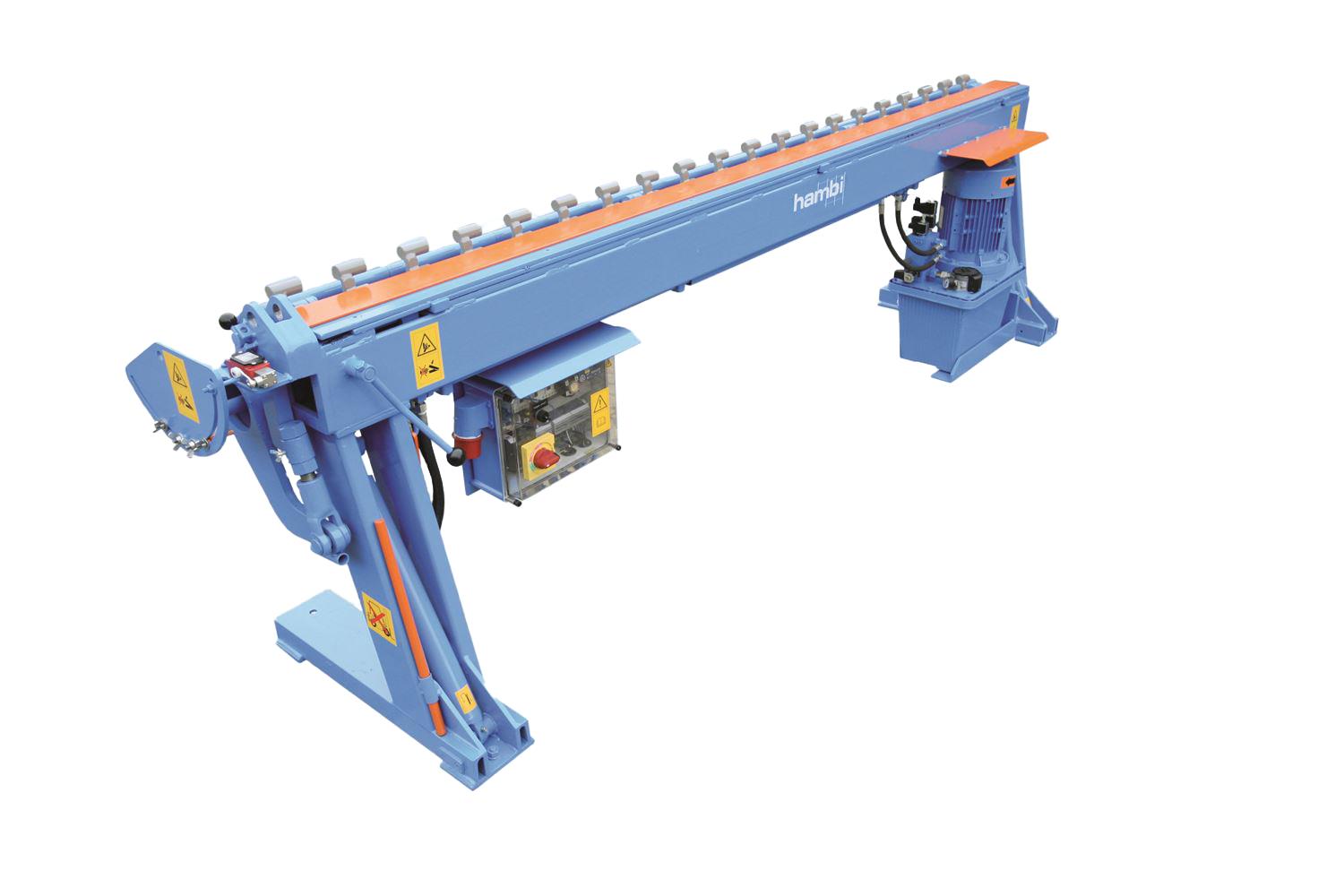

Machine specifically suited for bending steel mesh, concrete mesh. The hydraulic MBH version has the advantage that very compact dimensions for cages bent from mesh can be achieved.

Features:

· Reinforced contruction and bending cams;

· Hydraulic drive system;

· 2 bending speeds;

· Easy and quick adjustment of the bending cam positions;

· Setting up 3 bending angles up to 180°;

· Equipped with anti-rotation feature and central locking;

· With bending roll rail, preventing damages to the welded wire mesh;

· Larger bending cams (45, 60 and 75mm) are available on request.

Technical information:

· Bending capacity with 30mm bending cams: max. 40 x Ø12 mm, max. 25 x Ø14 mm;

· Working width: 4 meter;

· Voltage: 400V / 50Hz;

· Power: 7.5 kW;

· Dimensions (mm): 4400x750x950;

· Weight: 900 kg.
